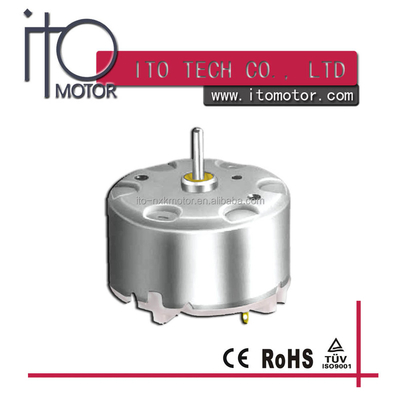

High quality diameter 32mm low noise and low speed brush micro dc motor
| MODEL | Voltage | NO- LOAD | AT MAXIMUM EFFICIENCY | STALL TORQUE | ||||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| OPERATING RANGE | NOMINAL | rpm | A | rpm | A | g·cm | W | g.cm | A | |
| IRF-500TB-12560 | 1.5V-12V | 6V | 2700 | 0.020 | 2180 | 0.084 | 11.6 | 0.26 | 60 | 0.35 |
| 9V | 4000 | 0.023 | 3300 | 0.110 | 15.8 | 0.53 | 91 | 0.52 | ||
| 12V | 5600 | 0.035 | 4700 | 0.190 | 12.6 | 0.61 | 80 | 1.00 | ||
| IRF-500TB-14415 | 1.5V-9.0V | 3V | 1800 | 0.022 | 1430 | 0.085 | 8.4 | 0.12 | 41 | 0.33 |
| 6V | 3700 | 0.028 | 3060 | 0.130 | 14.4 | 0.45 | 84.0 | 0.65 | ||
Customized Versions of High quality diameter 32mm 3v low speed brush micro dc motor
1.Precious metal-brush /carbon brush
2. In the lead , terminal
3. Voltage and speed adjustment by winding change
4. Modification of shaft length
5. Modification of shaft configuration (knurling ,the gear on the shaft)
6. Assembly of gears, vibrators, pulley, etc.
7. Oil bearing available.
8. Colored zinc plated chassis, salt fog test
Other customization of 32mm low speed mini dc motor
1)Plastic end cover
2)Motor specification can be tailor-made
3)Motor rotation: CW or CCW
4)Motor Flux ring thinkness can be made by special.
5)Motor Connector can be available.
Dimension of High quality IRF-500TB 3v dc micro vibration motor
Other Views of high torque low speed micro motors
Production line of Micro DC motor
Certificate of Micro DC motor
Welcome to customize suitable motor from ITO motor.
